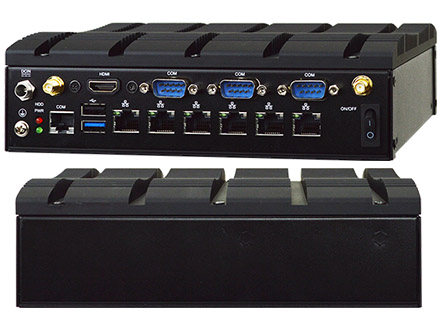

Jetway HBJC903I05-6412 (Intel Elkhart Lake J6412) [3x COM, 6x LAN]

Jetway HBJC903I05-6412 (Intel Elkhart Lake J6412) [3x COM, 6x LAN]
  • Elkhart Lake J6412 Processor !
  • 6x LAN !
  • HBJC903I05 !



  • Intel® Elkhart Lake J6412 Processor
  • Support 1* DDR4 3200 up to 32GB
  • 6* Intel® I225-V 2.5GbE
  • 1* M.2 M-key (2242, SATA interface) support NVMe
  • 1* M.2 E-key (2230, USB2.0/PCIe Gen.3 x1 interface)
  • 1* M.2 B-key (3042, USB3.1/PCIe Gen.3 x1 interface)
  • 1* USB3.1 (Gen.2), 1* USB2.0, 3* COM, 1* HDMI, 1* RS232(RJ45 TYPE)
  • Fan-less cooling design
  • Adapter DC12V_60W




Share

569.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model – HBJC903I05-6412 (Default)
– HBJC903I05I-6412 (Wifi)
CPU/Chipset – Intel® Elkhart Lake SoC Processor (J6412 , 4C/2.0GHz, TDP 10W)
BIOS – AMI 128Mb Flash ROM
Memory – 1* DDR4 3200MHz SO-DIMM up to 32GB
Network – 6* Intel® i225-V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 1* HDMI 1.4b (Max Resolution: 3840×2160@30Hz)
– Support Single Display
Storage – 1* M.2 M-key (2242, SATA interface) support NVMe
– 1* 2.5” SATAIII Device
Expansion – 1* M.2 E-key (2230, USB2.0/PCIe Gen.3 x1 interface)
– 1* M.2 B-key (3042, USB3.1/PCIe Gen.3 x1 interface)
Rear Panel I/O – 1* USB 3.1 (Gen.2)
– 1* USB 2.0
– 6* RJ45
– 1* Console RS232 (RJ45 TYPE)
– 3* COM (1* RS232/422/485, 2* RS232)
– 1* HDMI
– 1* Power LED, 1* HDD LED
– 1* Power Button
– 1* DC-in Jack (Lockable)
– 2* Antenna (Optional)
– 1* GND Hold
Front Panel I/O – N/A
Internal Connector – SIM Card Holder
Power Source – MB : DC-in 12V
– Adapter : DC12V_60W
Compliance – CE, FCC, RoHS, ErP Ready
Dimensions – System: 200 (W) x 180 (D) x 59.5 (H) mm
– Box: 287 (W) x 122 (D) x 280 (H) mm
– Net Weight: 2.26KG
– Gross Weight: 3.26KG
Temperature – Operating Temperature: -20 ~ 60° C
– Storage Temperature: -20 ~ 60° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
