Jetway HBJC38AZ02-20LB (Intel Tiger Lake Processor) [12-24V DC, 4x LAN]

Jetway HBJC38AZ02-20LB (Intel Tiger Lake Processor) [12-24V DC, <b>4x LAN</b>]
  • Intel Tiger Lake !
  • HBJC38AZ02 Series !



Share

1419.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Part No. – HBJC38AZ02 SERIES
BIOS – AMI Flash ROM
CPU/Chipset – Intel® Taigerlake-UP3 Soc Processor (i5-1145G7/default)
Memory 2* DDR4 3200MHz SO-DIMM up to 64GB
Graphics Intel HD Graphics, shared memory
2 * DP (Max Resolution: 4096x2304@60Hz)
1 * HDMI 2.0 (Max Resolution: 4096x2160@60Hz)
Network – 1 * Intel i219LM GbE
– 1 * Intel i225V GbE
Storage – 1 * M.2 M-key 2242/2280 (SATA/PCIe Gen4 x4 Interface support NVMe) – 1 * 2.5" SATA HDD (6Gb/s)
Expansion – 1 * M.2-2230 E-Key (USB2.0/PCIex1 for WiFi support CVNi)
– 1 * M.2-3042/3052 B-Key (USB3.1/USB2.0/PCIe x1 for 4G&5G expanison)
- 1 * SIM Card Adapter (Internal)

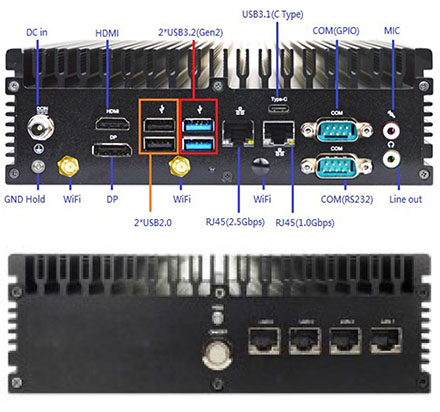

Rear Panel I/O – 2 * USB 2.0
– 2 * USB 3.2 (Gen.2)
– 1 * DP, 1 * HDMI
– 2 * RJ45 (2.5Gbps/1.0 Gbps)
– 1 * Line out, 1 * MIC combo
– 2 * COM (TOP: co-lay GPÜIO, Bottom: SUpport RS 232)
– 1 * DC Jack (Lock Type)
– 3 * Antenna holes (Optional)
Front Panel I/O – 1 * Power Button + LED
– 1 * HDD LED
– COM (By Model)
– Intel LAN (By Model)
– GPIO (8-bits IN & 8-bits OUT / by Model)
– USB3.0 (by Model)
Power Source – Adapter / AC 100~240V input / DC19V-90W
– MB : DC 12~24V input
Compliance – CE, FCC, LVD, RoHS,
Temperature – Operating Temperature: -20 ~ 50° C (Under the condition of using M.2 interface SSD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 70° C
– Humidity : 40% ~ 60% RH (non-condensing)
Dimensions – 185 (W) x 175 (D) x 60 (H) mm
OS Support – Windows 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
