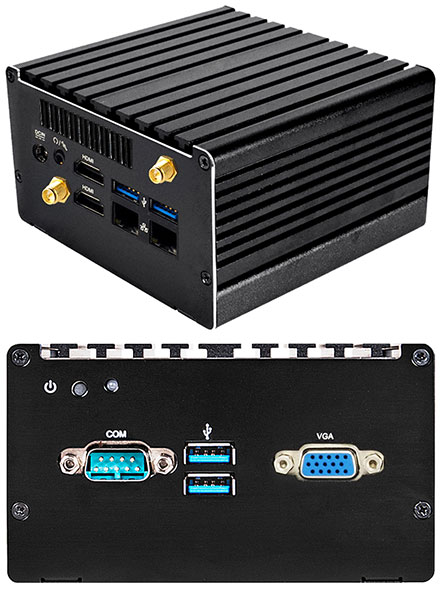

Jetway JBC323U691-345B (Intel Apollo Lake)

Jetway JBC323U691-345B (Intel Apollo Lake)

  • Intel Apollo Lake SoC Processor
  • 1 * SO-DIMM DDR3L up to 8GB
  • 4 * USB3.0, 1 * COM, 1 * VGA, 2 * HDMI, 2 * RJ45, 1 * Audio (MIC + Line-out)
  • M/B Form Factor :NUC (101x101mm)
  • DC-12V_40W Adapter


Share

369.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
MB Model – JNU691B-3350 / NUC (101 X 101 mm)
– JNU691B-3455 / NUC (101 X 101 mm)
Part No. – HBJC323U691-335B (non-WIFI) / HBJC323U691W-335B (WIFI)
– HBJC323U691-345B (non-WIFI) / HBJC323U691W-345B (WIFI)
BIOS – AMI 128MB SMT Flash ROM
CPU/Chipset – INTEL® Apollo Lake N3350 SoC Processor (TDP : 6W)
– INTEL® Apollo Lake J3455 SoC Processor (TDP : 10W)
Memory – 1 * DDR3L-1866MHz SO-DIMM up to 8GB
Storage – 1 * Full-size mSATA/Mini-PCI Express shared slot
– 1 * 2.5” SATA Drive (only support 2.5″ HDD with a hight ≤ 10mm)
Network – 2 * Gigabit LAN
– 1 * Half-size Mini-PCIE slot (for Mini-PCIE WIFI module)
– 1 * SIM Card
Rear Panel I/O – 2 * USB 3.0
– 2 * HDMI 1.4 (max. 3840×2160@30Hz resolution)
– 1 * VGA (max. 1920×1200@60Hz resolution)
– 2 * RJ45
– 1 * Audio (Line-out+MIC Combo)
– 2 * Antenna holes
– 12V DC in Jack
Front Panel I/O – 1 * Power button
– 1 * Power LED
– 2 * USB 3.0
– 1 * COM (RS232/422/485)
Power Source – AC-DC Adapter / DC12V-3.3A-40W
– AC 90~240V input
Compliance – CE, FCC, RoHS, ErP Ready
Temperature – Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C
Dimensions – 116 (W) x 110 (D) x 65 (H) mm
Packing – Net Weight: 0.9KG
– Gross Weight: 1.6KG
– Color Box dimension: 158 (W) * 164 (D) * 123.6 (H) mm
OS Support – Windows 10, Linux
Warranty – 2 Year limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
