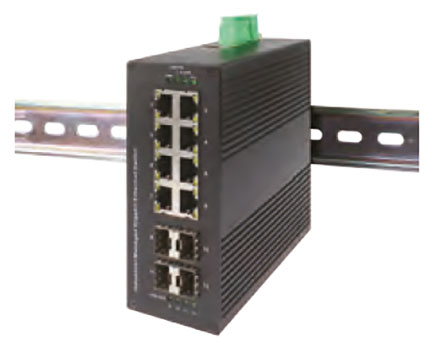

Jetway JDL108GP-4F-M (DIN Rail managed LAN Switch, 8x 1000MBit, 4x SFP, 45-60VDC, POE, Wide temperature range -40 to 75°C)

Jetway JDL108GP-4F-M (DIN Rail managed LAN Switch, 8x 1000MBit, 4x SFP, 45-60VDC, POE, Wide temperature range -40 to 75°C)



Share

609.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Chip Broadcom
Dimensions 140x138x60mm
Certifications&Safety; CE, FCC, ROHS
I/O Ports 8x 10/100/1000BaseT(X)
4x 1000 BaseSFP
RS-232(RJ45) Console port
LED: Power, POE, port speed, port connection
Management Support WEB Interface
Support SNMP v1/v2/v3
Standards IEEE802.3 10Base-T Ethernet standard
IEEE802.3u 100Base-TX/FX
IEEE802.3z 1000Base-X
IEEE802.3ab 1000Base-T(X)
IEEE802.3x Flow control
EEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
IEEE802.1p QoS
IEEE802.1ad QinQ
Network interface / Wire specifications 10BASE-T: Category 3 and above non-mask / mask twisted pair (<=100 m)
100BASE-TX: Category 5 and above non-mask / mask twisted pair (<=100 m)
1000BASE-T: Category 5 and above non-mask / mask twisted pair (<=100 m)
PoE Support PoE standard: IEEE802.3af, IEEE802.3a
Eeach port provides 15.4W, maximum 30W
Pin Definition: V+ (RJ4S Pin 1, 2), V- (RJ4S Pin 3, 6)
PoE Management: Support port-based PoE status display and PoE switch control
Power input / consumption Input voltage 45-60VDC
Redundant dual power input
Reverse connection protection
Power interface : 5pin terminal
Power supply : 140W (max)
Operating temperature -40~75°C
Cooling Fanless
MTBF 100.000hrs
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
