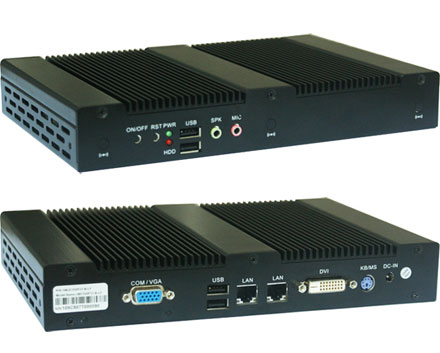

Jetway JBC350F32-B (Intel 945GSE)

Jetway JBC350F32-B (Intel 945GSE)

1. INTEL® 945GSE + ICH7M Chipset
2. Support INTEL® Atom N270 CPU(45nm,512K Cache, 1.60 GHz, 533 MHz FSB)
3. Build-in INTEL®GMA 950 Graphics Core
4. Integrated LVDS support 18-bit TFT LCD
5. Supports Daul Gigabit LAN
6. Integrated ALC662 HD Audio CODEC with 6-CH
7. Support Watch dog Technology
8. Easy to use
9. Support 2.5" SATA HDD
10. Small size


Product Accessories
- Manual
- CD
- Wall mount bracket
- AC adapter
- Power cord
- LCD Mount


Share

249.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

Add to cart
Model No   JBC350F32-B
Motherboard Specification
CPU INTEL ® Atom N270 CPU(45nm,512K Cache, 1.60 GHz, 533 MHz FSB)
Chipset INTEL® 945GSE + ICH7M chipset
Build-in INTEL® GMA 950 Graphics Core(Share Memory Size: 128/224MB)
Front Side Bus 533MHz
Memory 1 * SO-DIMM Sockets for un-buffered Single Channel DDR2 533/400 SDRAM
Up to 2 GB
LAN 2 * Realtek RTL8111DL PCI-E Gigabit Ethernet LAN
Audio Realtek ALC662 6-Channel HD Audio Codec
Storage 1 * Serial ATA2 3Gb/s connector
1 * Ultra DMA 133/100 IDE connector
USB Embedded 4 * USB 2.0/1.1
BIOS Award 8MB DIP Flash ROM
Form Factor 3.5” SBC (148mm x 102mm)
Barebone Specification
Product size 240(W) x 160(D) x 37(H)mm
Specs Devices 1 x 2.5” HDD Drive Bay (Only support SATA 2.5” HDD)
Colors Black
Front I/O Port 2 * USB 2.0
1 * Line-OUT & 1 * MIC
1 * Power button & 1 * Reset button
Rear I/O Port 2 * USB 2.0 ports
1 * PS2 K/B connector
2 * RJ-45 port(Gigabit LAN)
1 * 12V DC jack
1 * DVI-D port
1 * VGA port
Power supply +12V DC-IN Power
Accessory 60W AC-DC Adapter x1
Power Cord x1
CD x1
Manual x1
Wall Mount x2
LCD Mount x 2
COM cable x 1
Application Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, Factory Automation.
Packing Color Box Dimension417(W) x 137(D) x 296(H)mm
Gross Weight2.6KG
Net Weight2.1KG
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
Specifications [EN] Download (PDF)
